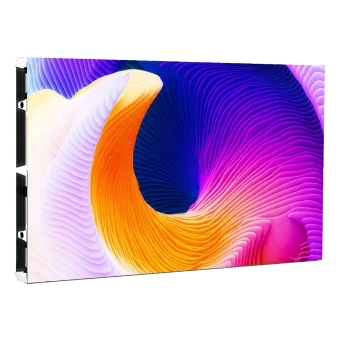

MW7809-FI-CFFlip-chip COB 0.9/1.2/1.5mm Indoor Fine Pixel LED Display
Model variants
Equipment is sold through official dealers.
Specifications
- Module
- Description
- Encapsulation Method
- Flip-chip COB common cathode
- Pixel Pitch
- P0.9
- Module Resolution (W*H)
- 160*180
- Module Dimensions (mm)
- 150*168.75
- Cabinet
- Description
- Cabinet Dimensions （W*H*D）(mm)
- 600*337.5*39.5
- Cabinet Resolution (W*H)
- 640*360
- Processing Image
- Description
- Single Pixel Brightness Correction
- Support
- Single Pixel Color Correction
- Support
- Brightness （nits）
- 600
- Color Temperature （K）
- 6500 to 12000 adjustable
- Viewing Angle （H/V）
- 170°/160°
- Brightness Uniformity
- ≥97%
- Color Uniformity （Cx,Cy）
- ±0.003Cx,Cy
- Contrast Ratio
- 20000:1
- Processing performance
- Description
- Pixel Density （pitch/m²）
- 1137777
- Surface Evenness （mm）
- ≤0.1
- Grayscale
- 14bit
- Scanning Mode
- 54S
- Drive Mode
- Constant current driving
- Frame Frequency （Hz）
- 50/60
- Refresh Rate （Hz）
- ≥3840
- Electrical
- Description
- Power Supply
- AC 100 to 240V
- Average Power Consumption （W/m²）
- 110
- Max. Power Consumption （W/m²）
- 320
- General
- Description
- Maintenance Mode
- Front maintenance
- Ingress Protection
- IP65
- Weight （Kg/pcs）
- 5
- Operation Temperature
- -10°C to +40°C
- Operating Humidity
- 10% to 90%RH, non-condensing
- Storage Temperature
- -20°C to +60°C
- Storage Humidity
- 10% to 90%RH, non-condensing
- LED lifetime （h）
- 100000
- Model
- MW7812-FI-CF
Module
- Encapsulation Method
- Flip-chip COB
- Pixel Pitch
- P1.2
- Module Resolution (W × H)
- 120 x 135
- Module Dimensions (mm)
- 150 x 168.75
Cabinet
- Cabinet Dimensions (W × H × D) (mm)
- 600 x 337.5 x 39.5
- Cabinet Resolution (W × H)
- 480 x 270
Processing Image
- Single Pixel Brightness Correction
- Support
- Single Pixel Color Correction
- Support
- Brightness (nits)
- 600
- Color Temperature (K)
- 6500 to 12000 adjustable
- Viewing Angle (H/V)
- 170°/160°
- Brightness Uniformity
- ≥97%
- Color Uniformity (Cx, Cy)
- ±0.003
- Contrast Ratio
- 20000:1
Processing performance
- Pixel Density (pitch/m²)
- 640000
- Surface Evenness (mm)
- ≤0.1
- Grayscale (bit)
- 14bit
- Scanning Mode (S)
- 60 S
- Drive Mode
- Constant current driving
- Refresh Rate (Hz)
- ≥3840
Electrical
- Power Supply
- AC 100 to 240 V
- Average Power Consumption (W)
- 110
- Max. Power Consumption (W/m²)
- 320
General
- Maintenance Mode
- Front maintenance
- Ingress Protection
- IP65
- Weight (kg/pcs)
- 5
- Operating Temperature
- -10°C to +40°C
- Operating Humidity
- 10% to 90% RH, non-condensing
- Storage Temperature
- -20°C to +60°C
- Storage Humidity
- 10% to 90% RH, non-condensing
- LED Lifetime (h)
- 100000
- Certifications
- CE/FCC
